TEG-510C (CHUCK TYPE)
TEG-510 (SHOE TYPE)

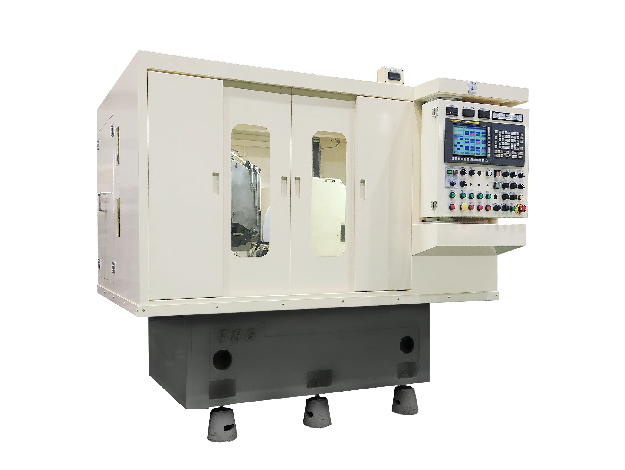

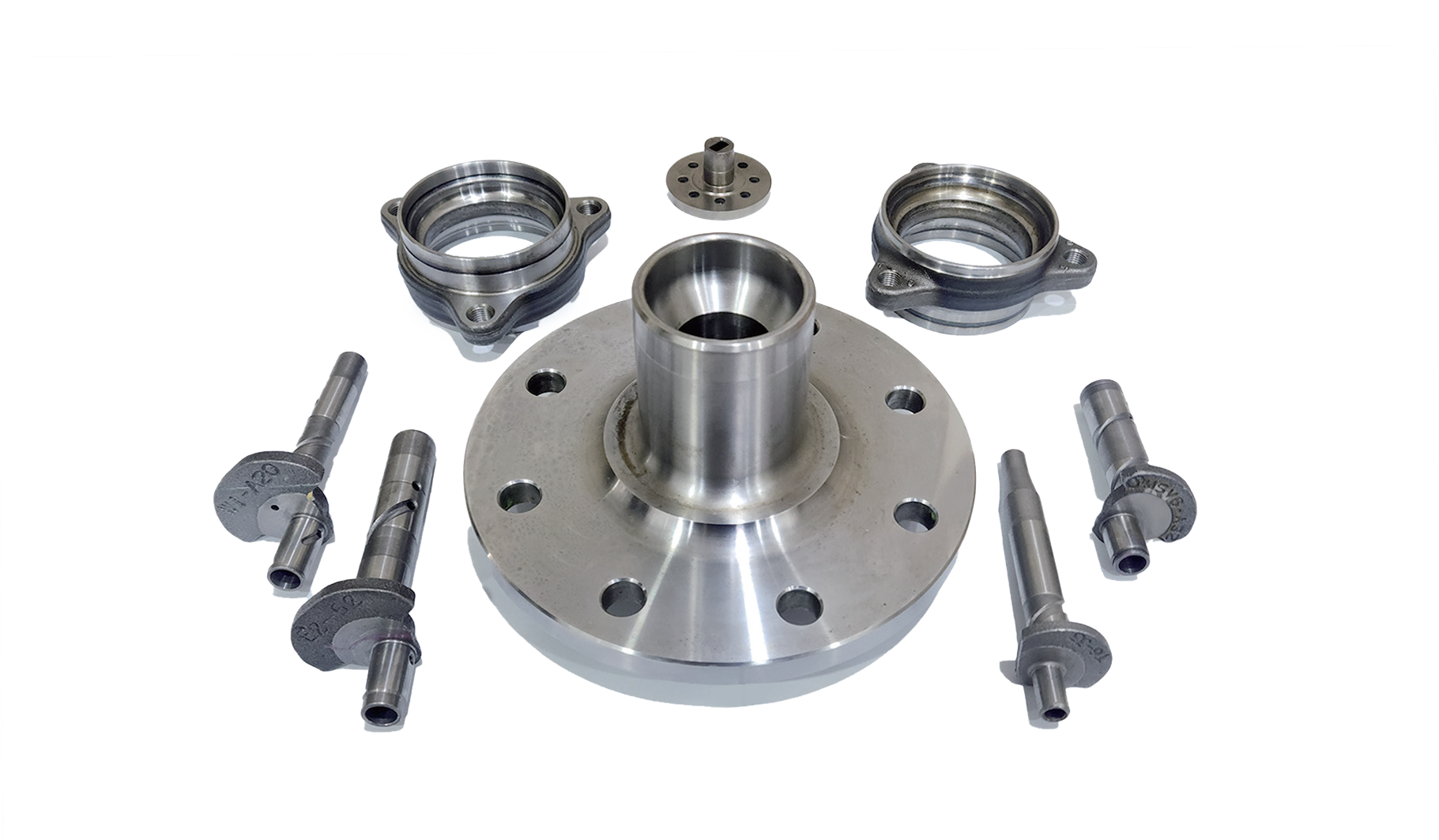

TEG-510C (CHUCK TYPE)
Superior Accuracy with Advanced Chuck-Type Grinding Technology
TEG-510C (CHUCK TYPE)
The TEG-510C external grinder is designed for high-precision chuck-type grinding, incorporating Diaphragm & Air Chuck technology for stable and accurate clamping. Built with a high-rigidity ultra-precision linear guide, it ensures long-lasting durability and smooth operation.

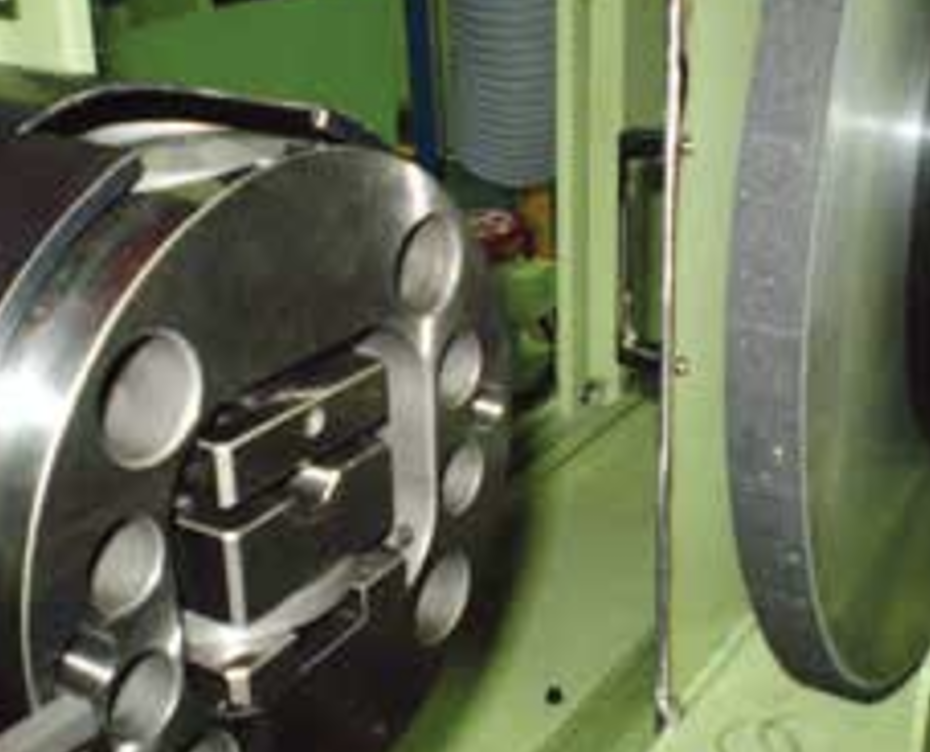

- Diaphragm & Hydraulic Chuck
- Variety of Wheel Spindles
- Angular Grinding Capable (Outer Diameter + Side)
- Rotary Forming Dresser Recruitment
- Bed and cooling water passages are separated to minimize thermal deformation
specifications
| ITEM | TEG-510C | |
|---|---|---|
| Support method | Diaphragm & Hydraulic Chuck | |
| Working range | Out-diameter | Ø90mm |
| Width | 50mm | |
| Loading Range | Out-diameter | Ø130mm |
| Wheel spindle | Speed | 3,000m/min |
| O.D*Width*I.D | Ø510 x 50 x Ø254, Ø560 x 50 x Ø254 | |
| High Precision: Hydro-static Spindle | ||
| Type | Low vibration type: Built-in-Motor Spindle | |
| For high strength: Angular Bearing | ||
| Work spindle | Speed | 300 ~ 3,000rpm |
| Swivel angle | 30º (Angular Grinding) | |
| Slide | Linear bearing slide | |
| Dresser | Rotary forming dresser | |
| Loader | Double arm loader | |
| Floor size | 2,300 x 1,800 | |
| Weight | 4,500Kg | |

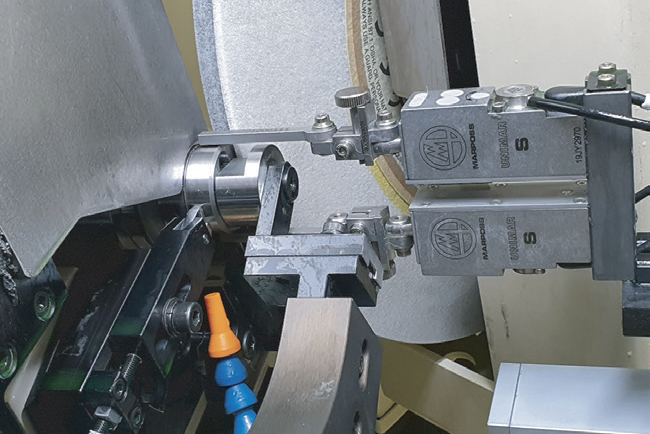

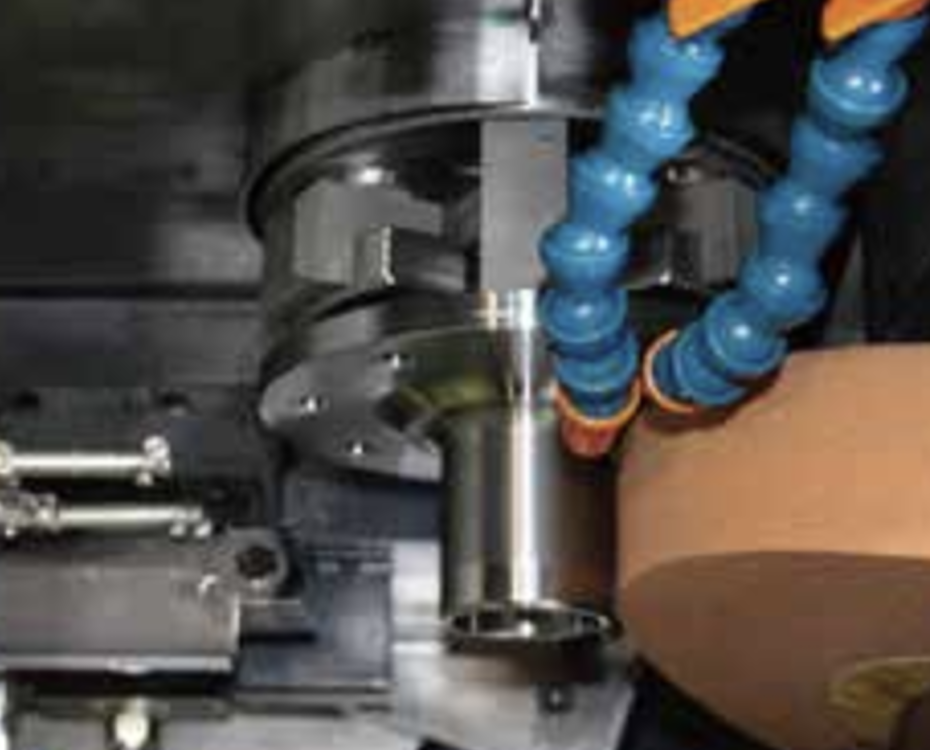

Hydraulic Chuck & In-process Gauge

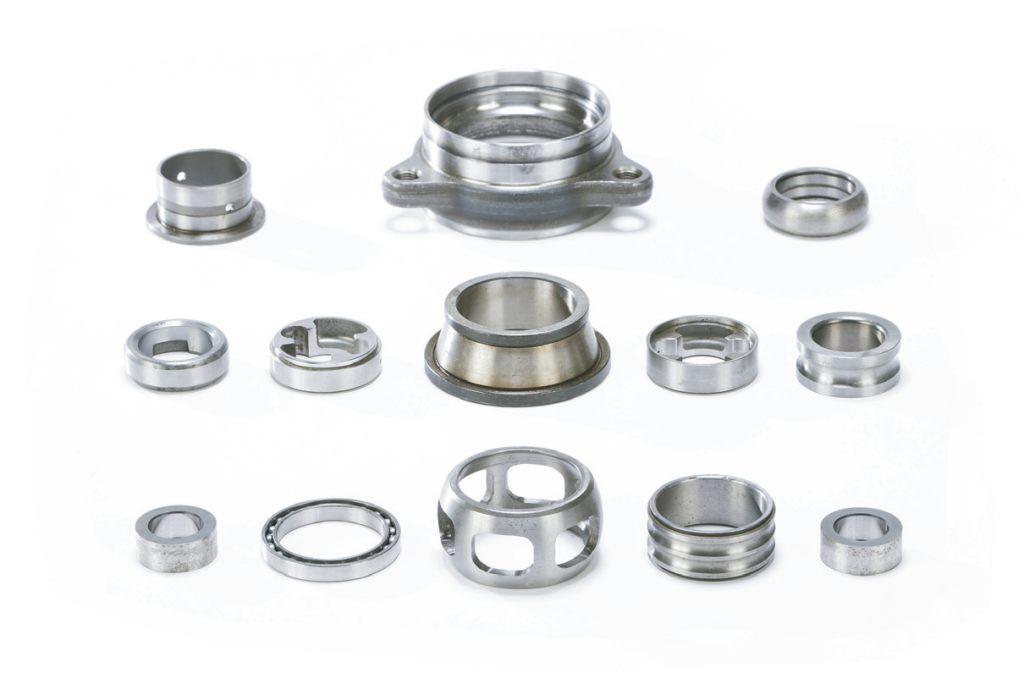

TEG-510 (SHOE TYPE)
Superior Accuracy with Advanced Chuck-Type Grinding Technology
TEG-510 (SHOE TYPE)
The TEG-510 external grinder is designed for high-precision chuck-type grinding, incorporating Diaphragm & Air Chuck technology for stable and accurate clamping. Built with a high-rigidity ultra-precision linear guide, it ensures long-lasting durability and smooth operation.
- 2 Shoes + Magnet type
- Variety of wheel spindles
- Angular grinding possible (outer diameter + cross-section)
- Rotary forming dresser employed
- Double arm loader minimizes cutting time
- Bed and cooling water passages are separated to minimize thermal deformation
specifications
| ITEM | TEG-510 | |
|---|---|---|
| Support method | 2 Shoes + Magnet type | |
| Working range | Out-diameter | Ø90mm |
| Width | 50mm | |
| Loading Range | Out-diameter | Ø130mm |
| Wheel spindle | Speed | 3,000m/min |
| O.D*Width*I.D | Ø510 x 50 x Ø254 | |
| High Precision: Hydro-static Spindle | ||
| Type | Low vibration type: Built-in-Motor Spindle | |
| For high strength: Angular Bearing | ||
| Work spindle | Speed | 300 ~ 3,000rpm |
| Swivel angle | 30º (Angular Grinding) | |
| Slide | Linear bearing slide | |
| Dresser | Rotary forming dresser | |
| Loader | Double arm loader | |
| Floor size | 2,300 x 1,800 | |
| Weight | 4,000Kg | |
Touch screen control panel
- Easy to operate: Easy to adapt even for unskilled people
- Grinding conditions: Input 50 types of models
- Various conditions such as CBN grinding wheel grinding program
Linear guide bearing application
- Ultra-precision Slide, high-precision Ball screw used
- Nano cutting without stick-slip
- Long-term reliability guaranteed

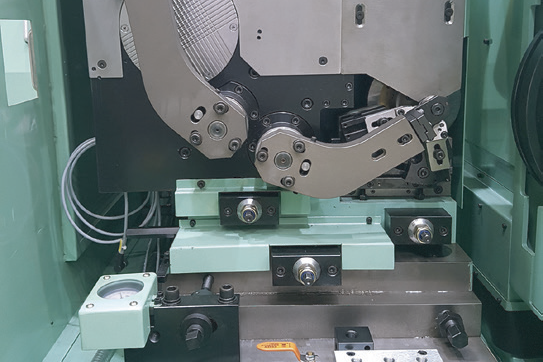

Auto loader
- High speed: Double arm loader
- Heavy duty: Sindle arm loader
- Inlet side: Rotating Work stopper
Variety of wheel spindles
- High-precision type: Hydro-static Spindle
- Low-vibration type: Built-in-Motor Spindle
- High-rigidity type: Angular Bearing
