TRM‐120 / TRM‐130B
The TRM-120 / TRM-130B is a next-generation cold rolling and forming machine designed for high-speed ring shaping and dimensional expansion. Using a mandrel and forming rolls, the machine forms both the inner and outer diameters of cylindrical workpieces without heat, enabling precise cold forming.
Equipment Overview

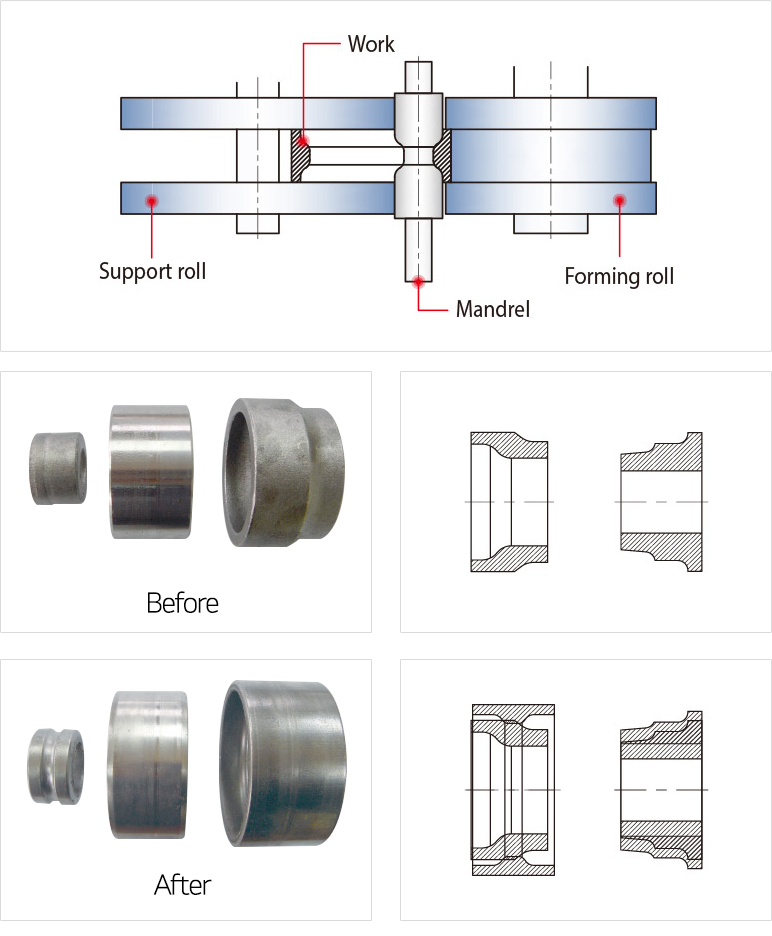

A machine that cold expands the inner and outer diameters of cylindrical products or forms the shape by mandrel and forming roll.
Forming Quality
Metal flow is formed by plastic processing, so heat treatment deformation is small, dimensions are stable, and wear resistance is greatly improved.
Cost Reduction
Material yield is improved by 20~30% in the case of bearings. Low cost, shortened C/T, long tool life due to cold plastic processing.
Cold Forming Range
Products are expanded by about 20% in outer diameter.
Dimension Control
Control by setting the range in multiple stages in NC CONTROLLER. SIZING is attached depending on the situation, so that the final dimension can be modified.
specifications
| ITEM | TRM-120 | TRM-130B | |
|---|---|---|---|
| Working range | Maximum OD after rolling | Ø20 ~ Ø120mm | Ø25 ~ Ø140mm |
| Maximum width after rolling | Max. 35mm | Max. 45mm | |
| Oscillation | Feeding Sys | Screw + Reducer | |
| Feeding Control | NC Control | ||
| Slide | L.M Guide | ||
| Roll Size | Max. Φ180mm | Max. Φ200mm | |
| Support Roll Size | max. Φ250mm | max. Φ280mm | |
| Mandrel Slide | L.M Guide | ||
| Loader | Air Cylinder + L.M Slide | Air Cylinder + L.M Slide | |
| Back up Roll | Not applied | Applied | |
| Sizing | Option | Option | |
| Motor | Roll Driving | Cyclo Reducer 11kw, 4p | Cyclo Reducer 15kw, 4p |
| Hyd’ Tank | 2.2kw | 2.2kw | |
| Floor Size(Hyd’ tank Included) | 2,900 x 1,900mm | 2,900 x 1,900mm | |
| Weight | 3,600kg | 6,600kg | |
High-strength semi-permanent transfer system
- Special SCREW resistant to vibration and shock
- High-strength SCREW compared to BALL SCREW
- Internal lubrication status can be checked and supplemented
High-rigidity, high-efficiency reducer
- High-rigidity, high-impact reducer
- A big difference from planetary gears
- Reducer suitable for high reduction ratios
Improved roundness by installing BACK UP ROLL
- Installation of BACK UP ROLL
- Excellent roundness improvement for products with shapes
- Stable forming with 3-point support
High-strength LM SLIDE
- L.M GUIDE adoption
- Dimension control slide, MANDREL, molding motor installed in 3 places
- Triple SEAL COVER attached
High torque forming MOTOR
- High performance CYCLO reducer adopted
- Minimized load during transfer due to forming
- LM GUIDE installed
- Grid coupling: Shock absorption possible
